200 Series
Model 225
Air-Cooled Gas

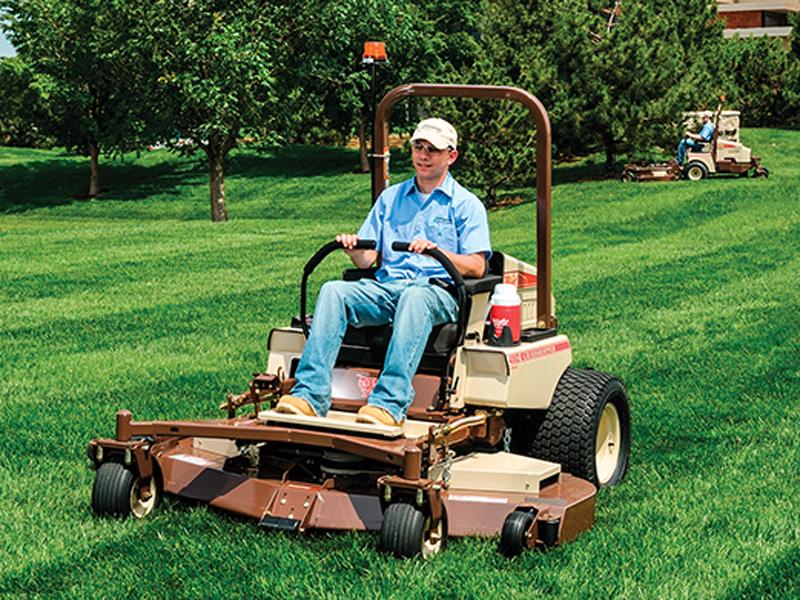

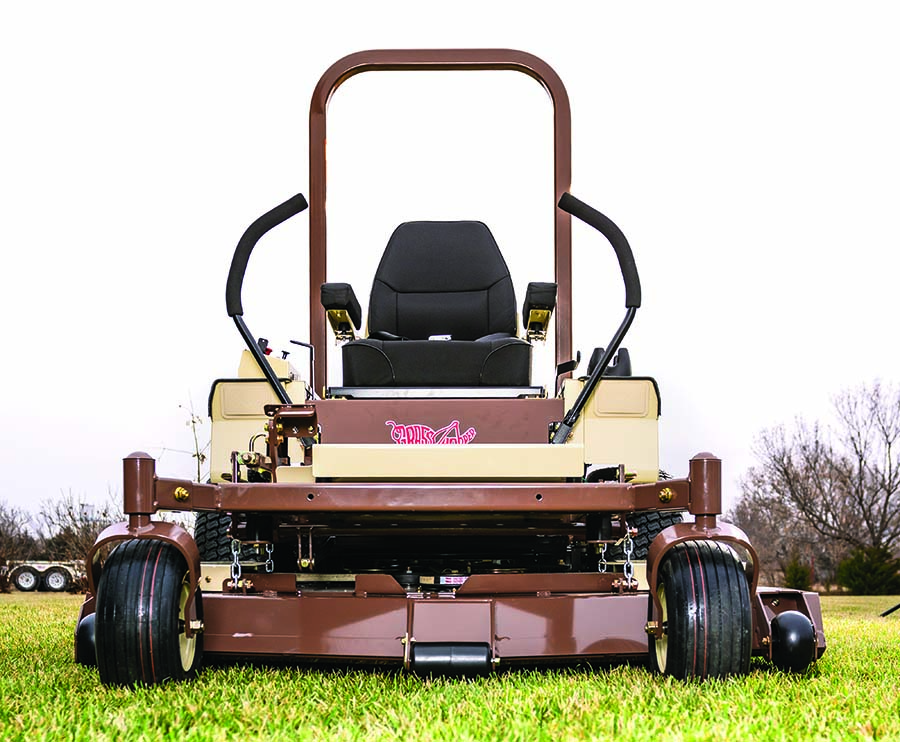

Designed for powerful, reliable and economical operation, the Model 225 offers turf care professionals the perfect introduction to Grasshopper True ZeroTurn™ performance, along with a smaller footprint ideal for tight quarters mowing.
Deck Sizes: 132 cm
Mowing speeds up to 14.5 KPH and 1.73 hectares/hr. based on 132 cm cutting width.*
*Actual results may vary. Click Here for Details
Kohler Command Pro Engine
- 747 cc, 2-cylinder, air-cooled Kohler Command PRO V-Twin engine
Design-Matched G2 Transmission
- Robust G2 transmission features 7-micron absolute filter and CoolFan™ hydro cooling system
- HydroGear variable displacement 16 cc piston-pumps and high-torque Parker wheel motors
- It offers smooth response and requires less maintenance thanks to an improved transmission fluid change interval of 1,000 hours.
Heavy-Duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes fabricated from double-layered, 7-gauge plus 10-gauge formed steel laminate that is 0.3138 inch thick 25.5 percent thicker than ½-inch steel
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
QuikAjust™ Drop Pin Height Adjustment
- Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.
Warranty
- Commercial Use: 3-year unlimited hours; limited warranty covering parts and labor.
- Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Reduced Maintenance
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
Ultimate Operator Station™: View-Eze™ Console
Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
Ultimate Operator Station™: ComfortReach™ Levers
One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Ultimate Operator Station™: Premium Comfort Seat
The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and foldable armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
.jpg)
Ultimate Suspension Ride™
Roomy, iso-mounted, shock-absorbing footrest.
.jpg)
Vigilant Operator Presence System™
- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
4X Rear Discharge Deck
Dedicated 48-inch and larger rear discharge decks throw clippings out back for a smooth cut and no windrowing.
Premier Suspension Seat
The Premier Suspension Seat offers the ultimate in comfort and an extra measure of suspension while mowing over rough ground. Adjustable backrest, armrests and lumbar support with weight-adjusted suspension control provide maximum comfort for operators of all sizes and preferences.
Extended Steering Levers
Provides an additional two inches of leg clearance.
Low-Pressure Bar-Tread Tires
Low-pressure, high-flotation bar-tread tires flex with the terrain for maximum traction and minimize scuffing caused by wheel spin-out.
DuraFlex™ Suspension Forks
Optional DuraFlex™ Suspension Forks absorb the impacts of rough terrain to maintain a level cut, and can be set for use with PowerVac™ collectors.
Foldable ROPS
The Foldable ROPS allows the two-post ROPS to be lowered for mowing under low-hanging trees and other overhead obstacles, or for storing and transporting in enclosed trailers with low door clearance. CAUTION: Avoid drop-offs, embankments and steep slopes. Do not allow ROPS to provide a false pretense of security in hazardous areas and avoid questionable conditions. Always wear seatbelt when Foldable ROPS is in up-right position. When Foldable ROPS is down, DO NOT use seat belt, and drive with extra caution.
Sunshade Canopy Vinyl for ROPS
Lightweight, water repellent, UV-resistant vinyl canopy mounts easily to ROPS to limit exposure to direct sunlight, reducing eye strain and increasing operator comfort.
Sunshade Canopy Aluminum for ROPS
Diamond-plated aluminum canopy is highly resistant to abrasions. Easily mounts to ROPS to increase operator comfort by limiting exposure to direct sunlight and reducing eye strain.
Adjustable Cup Holder
An Adjustable Cup Holder locks into multiple positions to accommodate a wide range of drink sizes. Standard on all liquid-cooled MidMount™ models.
DuraGuard™ Rear Bumper Guards
Two-bar DuraGuard™ Rear Bumper Guards provides additional protection of the rear of the mower while preserving easy access for removal of the rear service shield. Available for 200, 300 and 400 Series MidMount(tm) mowers.
LED Work Lights
LED work lights provide improved visibility in low light situations.
Down Discharge™ Mulching Package
The Down Discharge™ mulching package with GrassMax™ medium-lift blades cuts and recuts clippings and directs them deep into the grass bed, enriching turf and producing a beautifully manicured cut.
Electric Height Adjustment
The Electric Height Adjustment kit offers 1- to 5-inch height adjustment control from the operator's seat with the flip of a switch.
Speed-Trimming™ Roller Kit
The Speed-Trimming™ heavy-duty, anti-scalp roller kit for 52-inch and larger DuraMax® decks speeds close trimming near buildings, fences retaining walls and other landscaping features. Kits available for both left and right sides of cutting decks.
Michelin® X® Tweel® Airless Turf Tire 24x12.00x12
24x12.00x12 turf-tread drive tire, performs like a pneumatic tire but without the inconvenience and downtime associated with flat tires. Provides consistent hub height to ensure the mower deck produces an even cut and excellent lateral stability and outstanding operator comfort.
Custom Cordura® Weather Cover
Weather-resistant, black Cordura fabric cover with embroidered Grasshopper logo keeps seat and engine area protected during storage or between mowings. Slips over ROPS, with Velcro closure to secure the opening.
Michelin® X® Tweel® Airless Front Caster Tire 13x6.50x6
Smooth tread, 13x6.50x6 caster wheel. Performs like a pneumatic tire, but without the inconvenience and downtime associated with flats. Not for use with PowerVac Collection Systems, or with DuraFlex Suspension Forks.
Wide Seat Conversion Kit
Provides additional seating room for larger operators or to accommodate cell phones or pagers. Requires seat belt extension.
Edge-EZ™ Edger
Creates clean, sharp turf edges along sidewalks, roadways and driveways, eliminating time-consuming secondary trimming and reducing edging time up to 75 percent compared to hand-held string trimmers and walk-behind wheeled edgers.
Tine-Rake™ Dethatcher
The 46- and 60-inch Tine-Rake™ Dethatchers use spring steel tines to create a unified raking motion that removes large amounts of thatch and surface aerates soil. Used with a PowerVac™ Collection System, you can dethatch and collect debris in one pass for time-saving rejuvenation.
Shielded Sprayer
Double or even triple your spray crew's efficiency and enjoy faster application and greater coverage with a shielded sprayer for your Grasshopper zero-turn mower. Featuring aerodynamically designed shields and fully shielded curtains to deliver a fine-mist chemical spray, the shielded sprayer delivers on-target application every time. Four-nozzle spraying chambers provide uniform coverage, applying small droplets that "stick" to vegetation for more coverage per tank - up to 5.5 acres or 240,000 square feet - using less chemicals.
MidMount™ PowerVac™ Collection Systems
With a PowerVac™ Collection System for your Grasshopper zero-turn mower, you're getting the most powerful, maneuverable and efficient leaf-collecting, grass-catching and debris-removing equipment available for turf. You'll get a professional, finished look every time you mow.
